KEY FEATURES

Audinate Dante* expansion module for Midas and Behringer digital consoles
Up to 32 bidirectional channels @ 48 kHz
Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer)
Primary and secondary Ethernet interfaces for dual-redundant Dante networking
Operates from internal Dante network Precision Time Protocol (PTP) clock
Optional Dante Controller software for remote configuration (PC or Mac* computer)
LED indicators monitor network activity and speed

DESCRIPTION

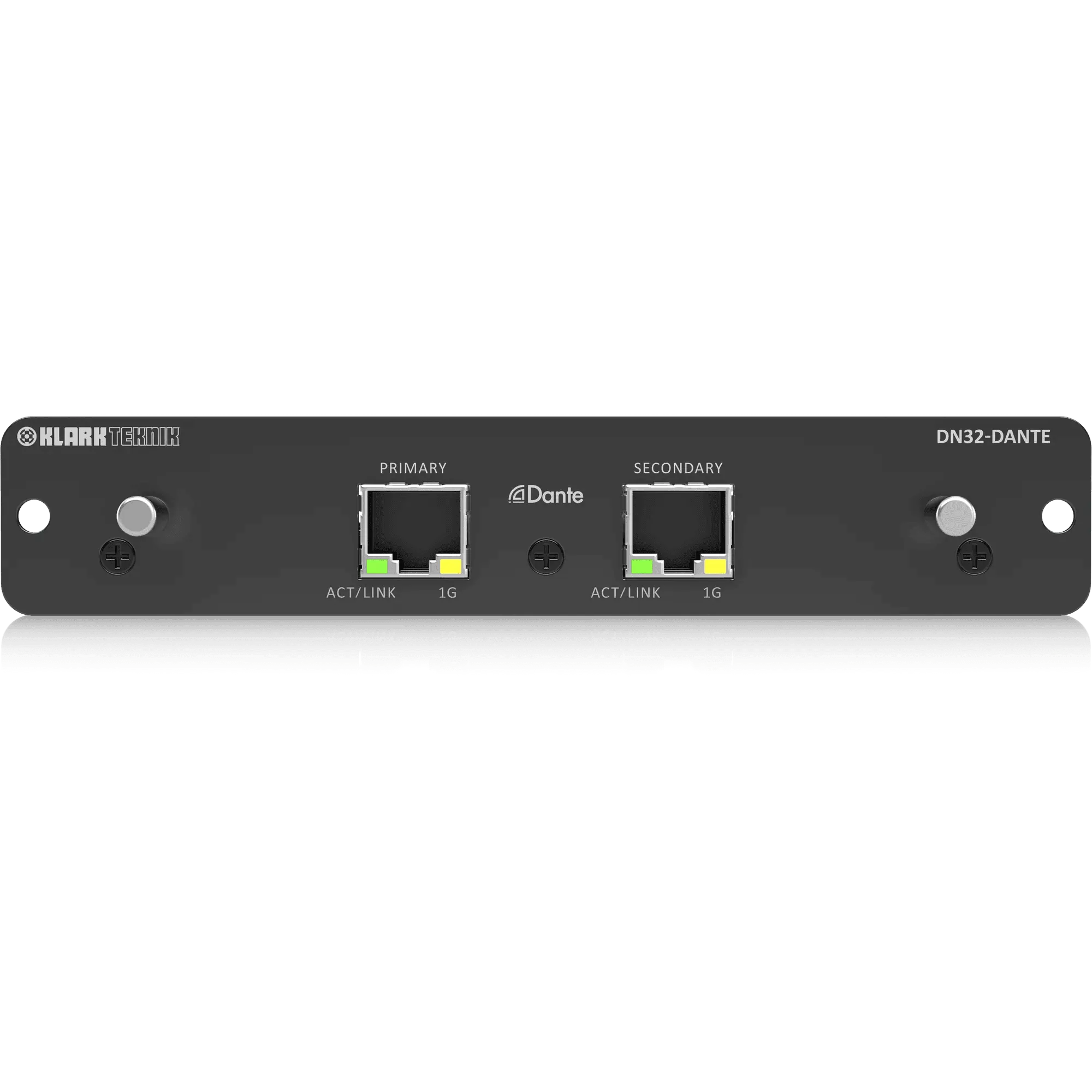

The DN32-DANTE expansion card provides up to 32 channels of bidirectional, networked audio to your Midas M32 or Behringer X32 mixing console for seamless integration with Dante enabled IP networks. Based on information technology standards, Dante provides uncompressed, multichannel digital media networking, with low latency and synchronization. By focusing on flexible interoperability on an existing IP network infrastructure, Dante has been widely accepted and adopted by many pro audio manufacturers.

Connectivity and Redundancy
DN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote control data for your console with bidirectional multichannel audio streams on the same cable.

When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection, and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches. For a list of compatible switches, visit www.audinate.com.

Clock Synchronization and Routing
The DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. All routings and device parameters can be controlled from anywhere in the network, and are exclusively made using the Dante Controller application.
