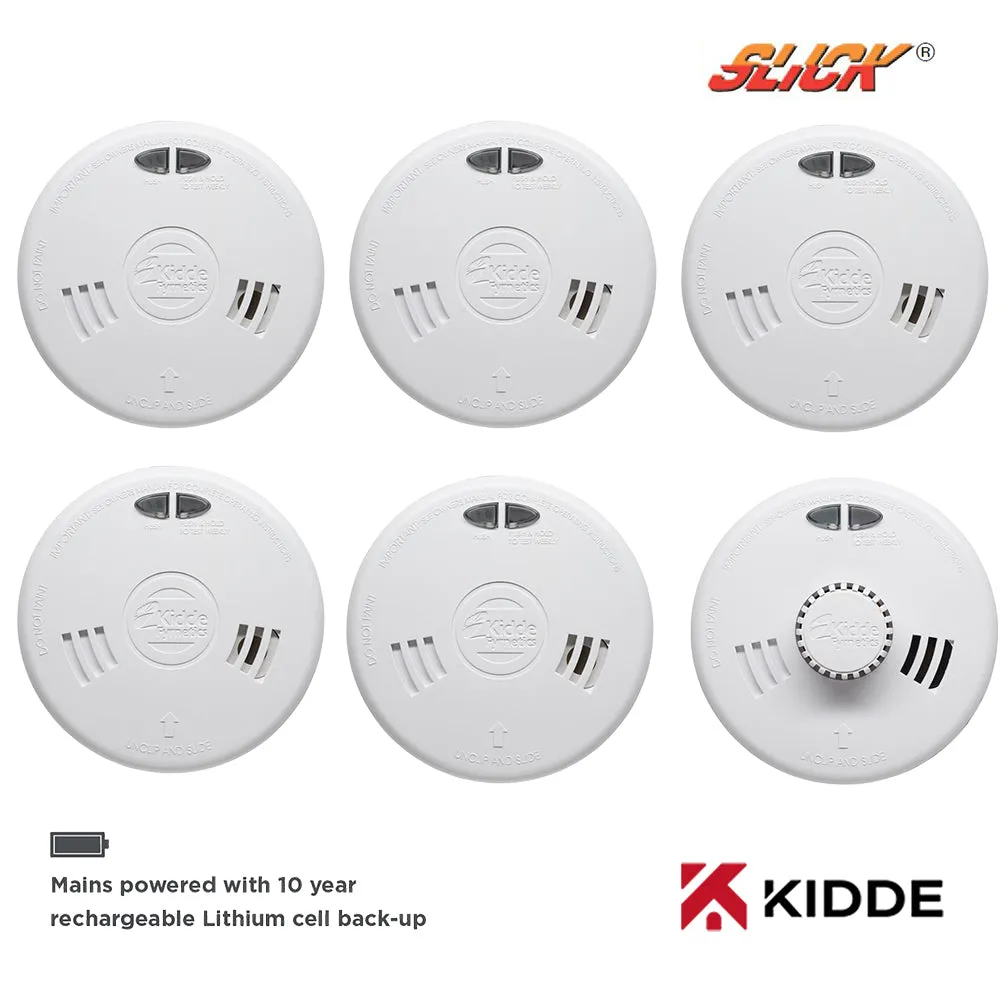

Name: Kidde Slick 5x 2SFWR Optical Smoke & 1x 3SFWR Heat Alarm Kit Mains Powered with Sealed-In Rechargeable Battery Back-Up
SKU: 317896

Kidde Slick 5x 2SFWR Optical Smoke & 1x 3SFWR Heat Alarm Kit Mains Powered with Sealed-In Rechargeable Battery Back-Up

FULLY COMPLY WITH THE NEW 2022 SCOTTISH & WELSH REGULATIONS

5x Mains Powered Optical Smoke Alarm (2SFWR):

Mains Optical Smoke Alarm Features:

Mains-powered Optical smoke alarm from the ‘Slick’ range of fast-fit alarms that can be interconnected with up to 23 other Kidde and Firex mains alarms.
Optional wireless capability using Wireless Alarm Base (RF-SFTP) for wire-free interconnection.
The ‘Slick’ range requires installation by a professionally qualified electrician and complies with UK Building Regulations for new housing and associated standards (Grade D, BS5839, Part 6).

Unique fast-fit system with separate base plate, for ease of fitting and maintenance
Integral, double-decker screwless terminal block for fast, push-fit connection
Auto reset after activation
Separate Test and Hush buttons to test and temporarily silence nuisance alarms
Sealed-in rechargeable Lithium cell for 6 months continuous operation in event of mains failure
Interconnectable with other Kidde mains smoke and heat alarms and Kidde mains CO alarms using ‘Smart Interconnect’ technology
Tamper-resistant locking device – prevents unauthorised removal without the use of a tool
Wireless capability – use with optional Wireless Alarm Base (RF-SFTP) for RF interlink function
Deep Base – allows easier wiring
Tamper-proof batteries – sealed-in to prevent removal

Mains Optical Smoke Alarm Specification:

Model 2SFWR
Power Supply 230V mains powered with rechargeable sealed-in Lithium cells
Temperature Range 0ºC to 40ºC
Humidity Range Up to 93% Relative Humidity (RH) non-condensing
Storage and Transport -20ºC to 60ºC and 5–95% relative humidity (RH) non-condensing
Alarm Dimensions 135 x 135 x 60mm (including ‘Slick’ mounting base)
Alarm Weight 247g
Warranty 10 years (including batteries)
Approvals BSI certified to BS EN14604:2005
CE tested and certified
Associated Standard BS 5839 Part 6 Grade D
Sensor Optical chamber with insect-resistant width slot entry inlet portals
Chamber Size 41mm outside diameter x 16mm approximate depth (external)
Sensitivity Complies with BS EN14604:2005
Detection Band infrared light wavelength
Button Test Simulates the effect of smoke within the sensing chamber, checks electronics and sounder
Automatic Self-test Circuitry is tested every 40 seconds and unit beeps if fault is detected
Supply Voltage 230V AC, 50 Hz (nominal UK voltage)
Power Consumption Maximum 80mA
Battery Back-up Non user-replaceable 4 x 3V rechargeable Lithium cells (ML 2430)
Battery Monitoring Battery is monitored and unit emits a single chirp every 40 seconds if a fault is present
Low Battery Warning 30-day low battery indicator
Power-on Indicator Continuous green LED
Alarm Sounder Electronic piezo-electric sounder (T3 pattern sound - three pulses - space - three pulses)
Sound Output 85dB (A) minimum at 3 metres
Alarm Frequency 3.2 kHz typical
Alarm Status Red LED flashes rapidly, typically once every 2/3 seconds = unit sensing a fire event
Red LED flashes once every 10 seconds = unit in hush condition, auto reset after 7 minutes
Red LED flashes once every 35 seconds = normal quiescent operation
Interconnection Up to 24 units (smoke, heat and CO) can be hardwire interconnected using SMART® interconnect system with optional control (see below)
Up to 15 units can be wireless interconnected using appropriate Wireless Base RF-SFTP
Optional Controls Wireless Base Remote Test and Hush Unit (KN-RTH-RF) when used with Wireless Base
Fixing ‘Slick’ mounting deep base as supplied
Base Cable Connect. Screwless Terminal Block with slot release feature for conductors

1x Mains Powered Heat Alarm (3SFWR):

Mains Heat Alarm Features:

Mains powered heat alarm from the ‘Slick’ range of fast-fit alarms that can be interconnected with up to 23 other Kidde and Firex mains alarms.
Optional wireless capability using Wireless Alarm Base (RF-SFTP) for wire-free interconnection.
Ionisation alarms are for use in areas where there is danger from fast-flaming fires.
The ‘Slick’ range requires installation by a professionally qualified electrician and complies with UK Building Regulations for new housing and associated standards (Grade D, BS5839, Part 6).

Unique fast-fit system with separate base plate, for ease of fitting and maintenance
Integral, double-decker screwless terminal block for fast, push-fit connection
Auto reset after activation with latching LED allowing the initiating alarm to be identified
Separate Test and Hush buttons to test and temporarily silence nuisance alarms
Sealed-in rechargeable Lithium cell for 6 months continuous operation in event of mains failure
Interconnectable with other Kidde mains smoke and heat alarms and Kidde mains CO alarms using ‘Smart Interconnect’ technology
Tamper-resistant locking device – prevents unauthorised removal without the use of a tool
Wireless capability – use with optional Wireless Alarm Base (RF-SFTP) for RF interlink function
Deep Base – allows easier wiring
Tamper-proof batteries – sealed-in to prevent removal

Mains Heat Alarm Specification:

Model 3SFWR
Power Supply 230V mains powered with rechargeable sealed-in Lithium cell
Temperature Range 0ºC to 40ºC
Humidity Range Up to 93% Relative Humidity (RH) non-condensing
Storage and Transport -20oC to 60oC and 5 – 95% relative humidity (RH) non-condensing
Alarm Dimensions 135 x 135 x 60mm (including ‘Slick’ mounting base)
Alarm Weight 240g
Warranty 10 years (including battery
Approvals BSI certified to BS5446 Part 2:2003
CE tested and certified
Associated Standard BS 5839 Part 6 Grade D
Sensor Thermistor (Thermal resistor) within detection unit
Sensitivity Complies with BS 5446 Part2:2003, as a Class A2 device, alarms between 54ºC and 70ºC
Button Test Simulates the effect of heat at the sensor, checks electronics and sounder
Automatic Self-test Circuitry is tested every 40 seconds and unit beeps if fault is detected
Supply Voltage 230V AC, 50 Hz (nominal UK voltage)
Power Consumption Maximum 80mA
Battery Back-up Non user-replaceable Lithium Polymer Cell
Battery Monitoring Battery is monitored and unit emits a single chirp every 40 seconds if a fault is present
Low Battery Warning 30-day low battery indicator
Power-on Indicator Continuous green LED
Alarm Sounder Electronic piezo-electric sounder (T3 pattern sound - three pulses - space - three pulses)
Sound Output 85dB (A) minimum at 3 metres
Alarm Frequency 3.2 kHz typical
Alarm Status Red LED flashes rapidly, typically once every 2/3 seconds = unit sensing a fire event
Red LED double flashes every 30 seconds = unit is triggering unit (press test button to unlatch)
Red LED flashes once every ten seconds = in hush condition (auto-reset after 7 minutes)
Red LED flashes once every 35 seconds = normal quiescent operation
Interconnection Up to 24 units (smoke, heat and CO) can be hardwire interconnected using SMART® interconnect system with optional control (see below)
Up to 15 units can be wireless interconnected using appropriate Wireless Base RF-SFTP
Optional Controls Wireless Base Remote Test and Hush Unit (KN-RTH-RF) when used with Wireless Base
Fixing ‘Slick’ mounting deep base as supplied
Base Cable Connect. Screwless Terminal Block with slot release feature for conductor
