Simple and Affordable Bulk Hot Melt Bead Dispensing System
Bulk hot melt dispensing doesn't have to be expensive or difficult to configure. Our entry level dispensing system offers an out-of-the-box solution for applying bulk hot melt. This easy, affordable system includes a 10 lb. hot melt tank, hose and hand gun for bead dispensing almost any bulk hot melt. Simply plug the tank into any standard 120V outlet and you're ready to go.
Available in as well.
System Includes

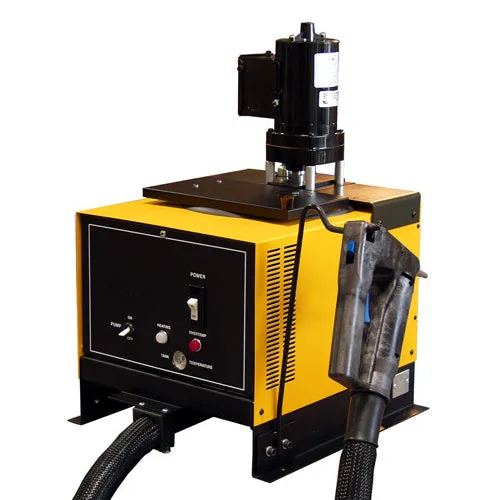

- 10 lb. Industrial Tank

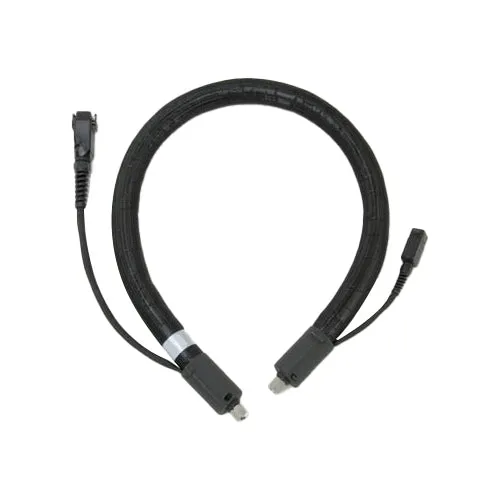

- Hot Melt Hose - Configurable Length

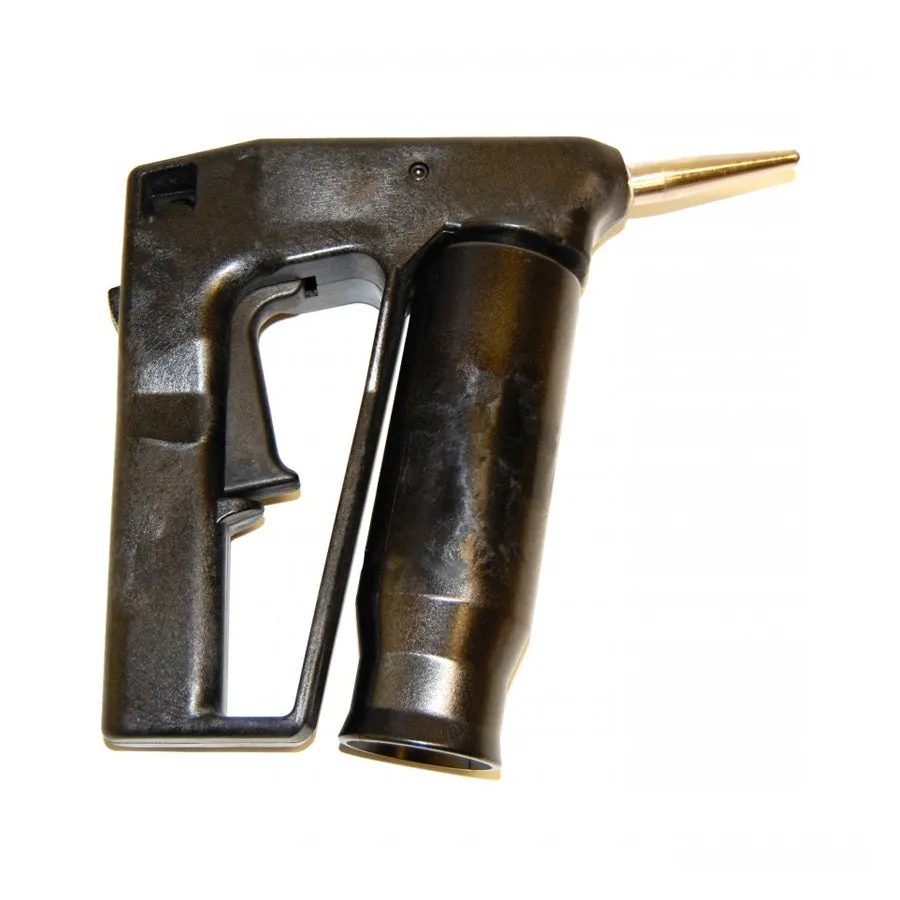

- Bulk Hot Melt Handgun
Features and Benefits
- Simple, all-electric design
- Lightweight for easy mobility
- Bulk hot melt is much more cost-effective than glue sticks
- Reduced user fatigue with gear pump-driven system
- Compatible with all types of adhesive: pellets, granules, pillows, and blocks up to 70,000 cps
- Meets the demands of higher volume applications
- Adjustable temperature and flow rates
- Fan-cooled AC gear motor for long life
Specifications
- Type: All-Electric Hot Melt Unit
- Applications: Packaging and Product Assembly
- Tank Capacity: 10 lb. (4.5 kg)
- Temperature Control: Bi-Metallic Thermostat / Capillary Thermostat
- Temperature Range: 300°F to 400°F
- Warm-Up Time: 30 to 45 Minutes
- Electrical: 120V AC / Max. 2700 Watts
- Motor: 44 RPM
- Pump: 30 mm / Up to 70,000 cps - Maximum Pump Rate of 60 lb./hr. (27.2 kg/hr.)
- Hose: System Can Be Upgraded to Have Two Hoses (Max. 16 ft. Each)
- Hand Gun: Can Have Automatic Heads or Handguns; Universal Design Accepts AXCO, Nordson, ITW/Dynatec, HMT, and Other Brands
- Dimensions: 20.75" H x 13.5" W x 15" D
- Weight: 45 lb. (20.4 kg)
