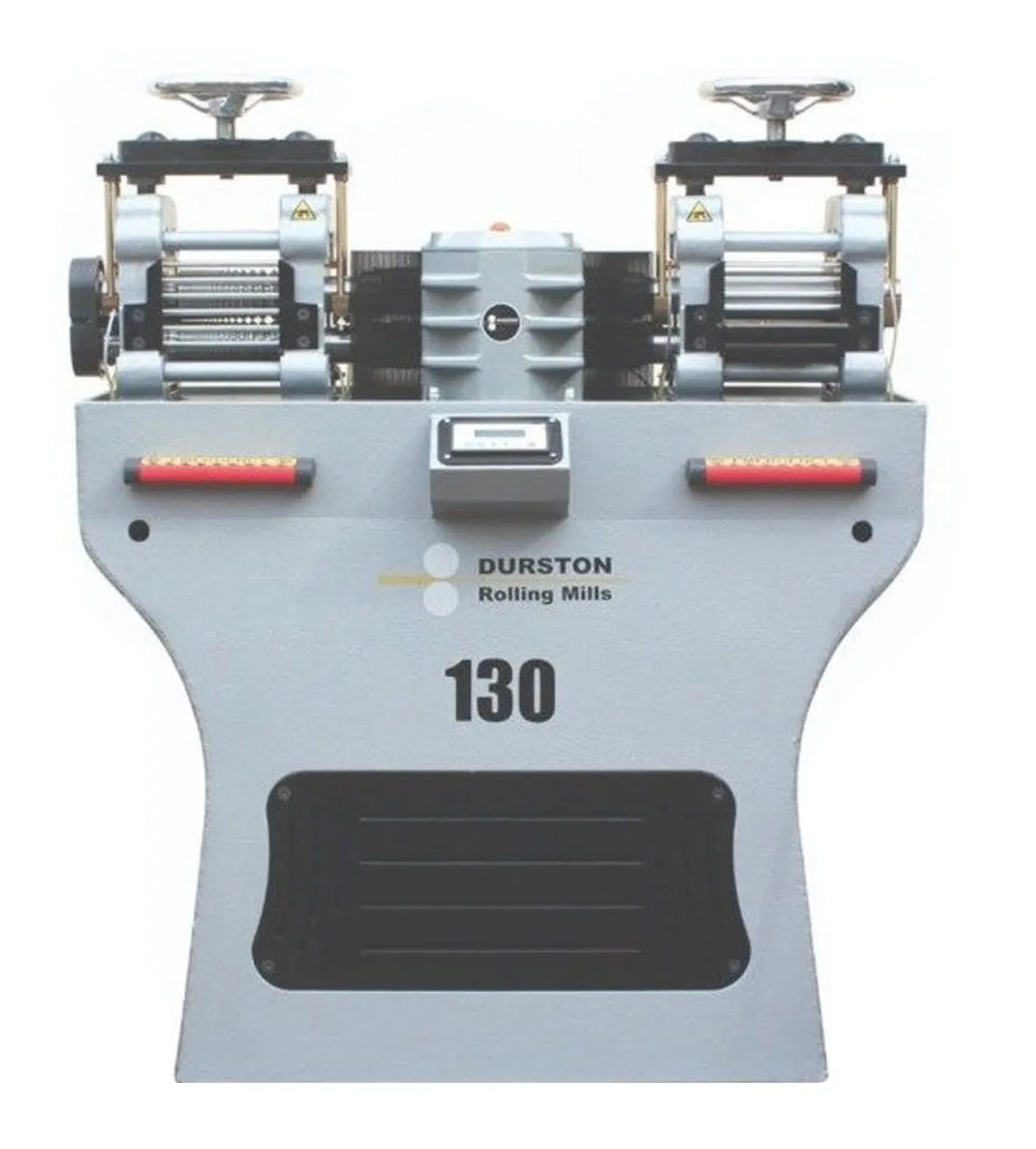

Rolling mills are designed to gradually reduce metal stock thicknesses to achieve the exact gauge size for your work. Durston Rolling Mills are compact, yet have everything you need to form metals. The FSM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. This mill is a floor-standing mill and has lubrication on the roll bearings. The 1.1 KW motor is sturdy enough for continuous operation, which is why Durston mills have such a long working life. This versatile package has variable speeds with forward and reverse and a highly efficient near-silent operation. The rolls are specially induction hardened to 64 RC (the right barrel provides a large flat rolling service of 130 mm on rollers with a diameter of 65 mm, offering a maximum roll thickness of 6 mm, ensuring that your rolls last a lifetime. The right-hand barrels are dedicated to square wire forming and offer 19 grooves ranging from 7 mm to 1 mm. A set of extension rollers provide a total of four half-rounds; 4, 3, 2, and 1.5 mm. Optional extras include digital roll gap metre and work lights. Freight shipping required, please contact us at (855) 298-7627 for pricing.Additional Details & Information:
Dimensions: 825 mm long x 450 mm wide x 1210 mm high
Number of Grooves: 19
Roller Type: Combination
Side Extensions: 1.5 & 2 mm; 3 & 4 mm
Roller Measurements: 65 mm in diameter x 130 mm long
Maximum Sheet Thickness: 14 mm
Maximum Wire Capacity: 7 mm
