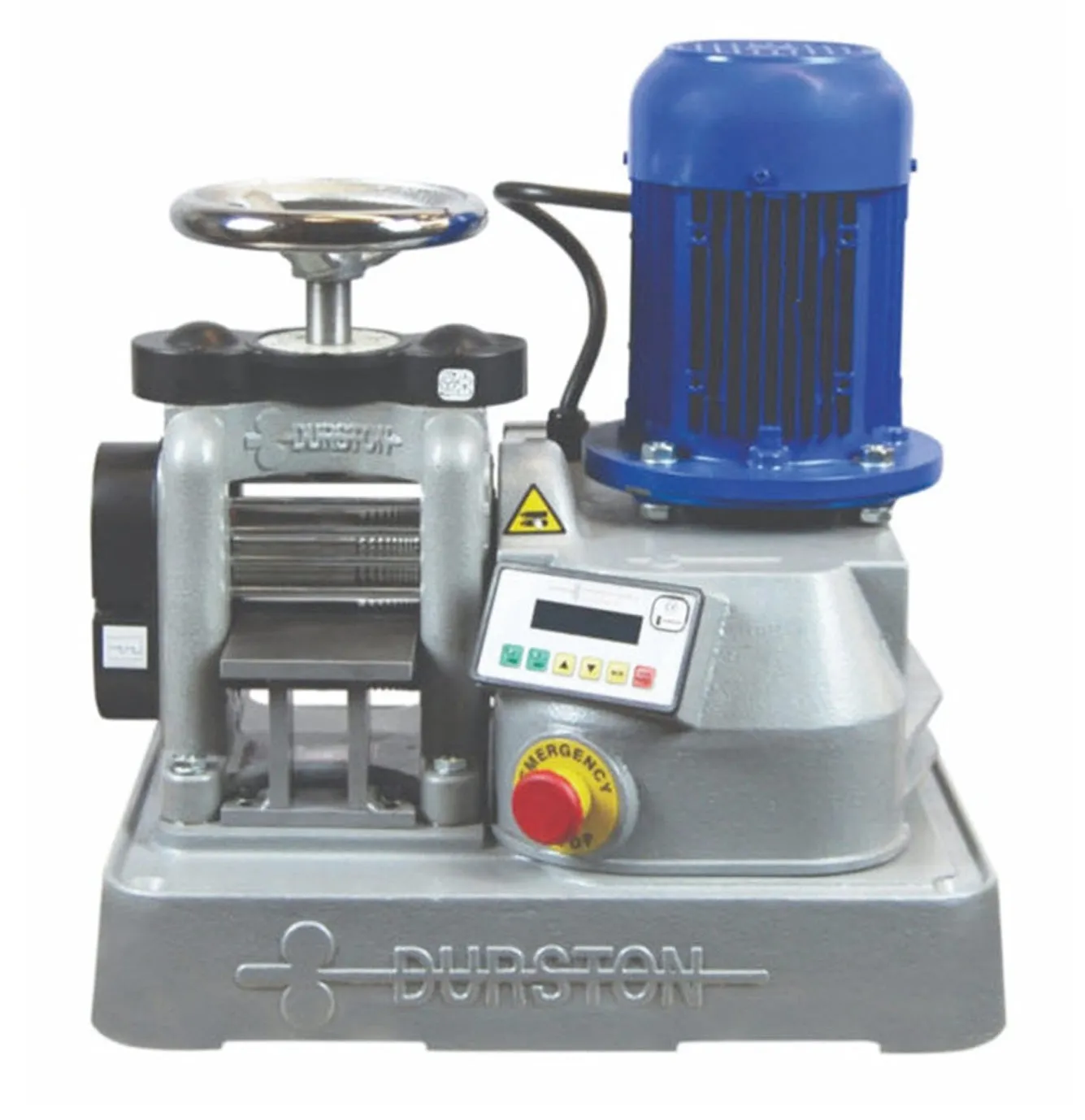

Rolling mills are designed to gradually reduce metal stock thicknesses to achieve the exact gauge size for your work. Durston Rolling Mills are compact, yet have everything you need to form metals. Constructed from solid cast iron for optimal strength and rigidity, the C130 is a powered combination mill for both flat metal and square wire powered milling. The 1.1KW 110-volt motor is powerful enough for continuous operation, which is why Durston Tools mills have such a long working life. This versatile package has variable speeds from 5 to 20 RPM and a highly efficient, near-silent operation. The rolls are especially induction-hardened to 64RC; plus the main barrel to a depth of 6 mm to ensure that your rolls last a lifetime. The rolls are combination-rolled providing both flat and square wire rolling. The mill includes 11 square grooves of wire rolling from 8 mm to 1 mm. Side extension rollers offer a total of four half-rounds of 4, 3, 2, and 1.5 mm. Safety features include an emergency stop button, safety bars at the front and rear of the mill, guards covering the extension rollers, as well as guards covering the top gears. Part of Durston Tools award-winning range of products available since 1961. We highly recommend that your Durston Tools rolling mills are securely fastened down for safety. Freight shipping required, please contact us at (855) 298-7627 for pricing.Additional Details & Information:
Dimensions: 500 mm long x 390 mm wide x 540 mm high
Number of Grooves: 11
Roller Type: Combination
Voltage: 110V
Range: DRM-Powered
Side Extensions: 4, 3, 2, & 1.5 mm
Roller Measurements: 65 mm in diameter x 130 mm long
Maximum Sheet Thickness: 6 mm
Maximum Wire Capacity: 8 mm
