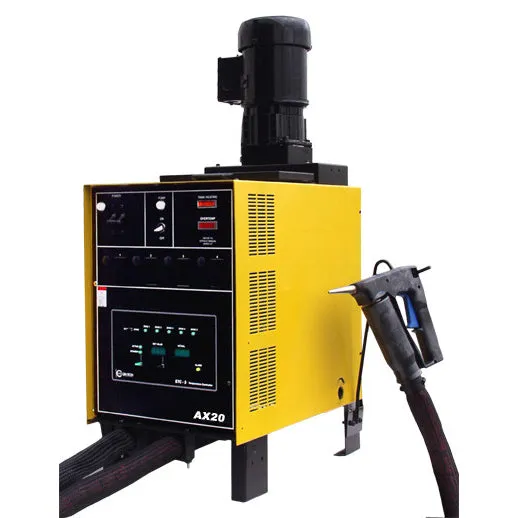

AXCO AX20 Bulk Hot Melt Tank Overview

The AXCO AX20 is a fully electric bulk hot melt tank designed for product assembly and packaging operations. It has a 20 lb. (9.1 kg) tank capacity and can push up to 60 pounds of adhesive per hour with its robust 86 RPM motor and 30 mm pump. The AX20 efficiently bonds materials like cardboard, fabric, glass, foam rubber, and plastic, eliminating the need for tape, cold glue, or metal fasteners, and reducing costs. This versatile unit is upgradeable, capable of handling two manual hoses or up to four automatic hoses and guns, ideal for both bead and spray applications with enhanced control options.

Please Note: Hose and nozzle are sold separately.

Features and Benefits

Simple, fully electric design
Requires 240V AC single phase power
Adjustable control for adhesive flow
Non-stick Teflon coated melt tank minimizes char buildup
Powerful 86 RPM motor and 30 mm gear pump
Adjustable temperature settings
Compatible with handguns or automatic heads
Constructed with durable heavy-gauge steel chassis

Specifications

Model: AX20
Type: All-Electric Hot Melt Unit
Applications: Packaging and Product Assembly
Tank Capacity: 20 lb. (9.1 kg)
Temperature Control: Adjustable Solid State Temperature Controller or Optional
Thermostat Controls
Temperature Range: 300°F to 400°F
Warm-Up Time: 30 to 45 Minutes
Electrical: 240V AC / Max. 1400 Watts
Motor: 86 RPM
Pump: 30 mm - Maximum Pump Rate of 60 lb./hr. (27.2 kg/hr.)
Hose: None Included - System Can Have One or Two Manual (Max. 16 ft. Each) - Up to Four Automatic
Automatic Heads and Hand Gun: None Included - Universal Design Accepts Axco, Nordson, ITW/Dynatec, HMT, and Other Brands
Dimensions: 32.1" H x 13.5" W x 15" D
Weight: 78 lb. (35.4 kg)
